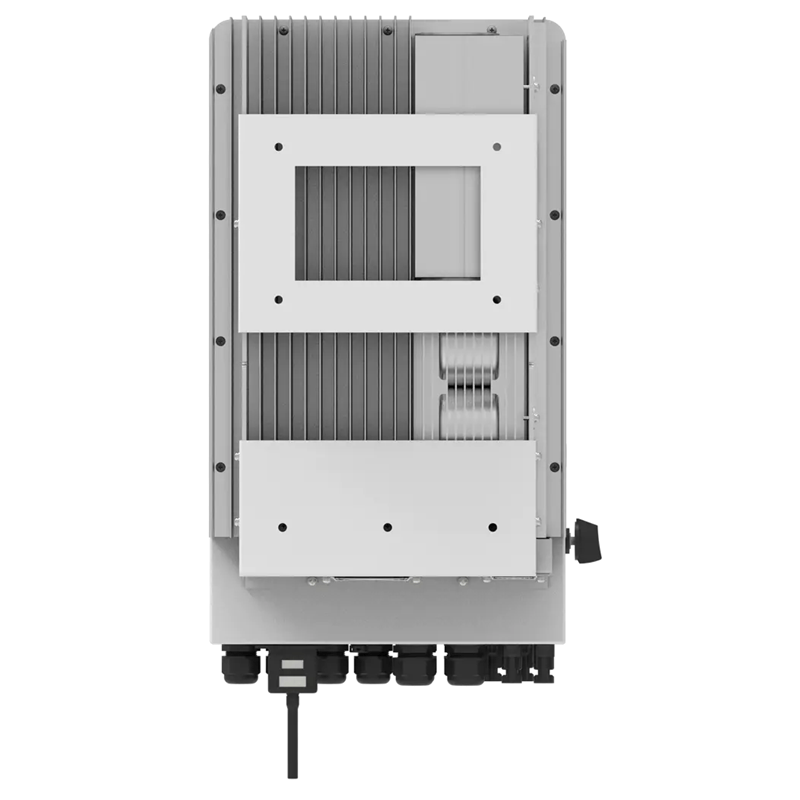

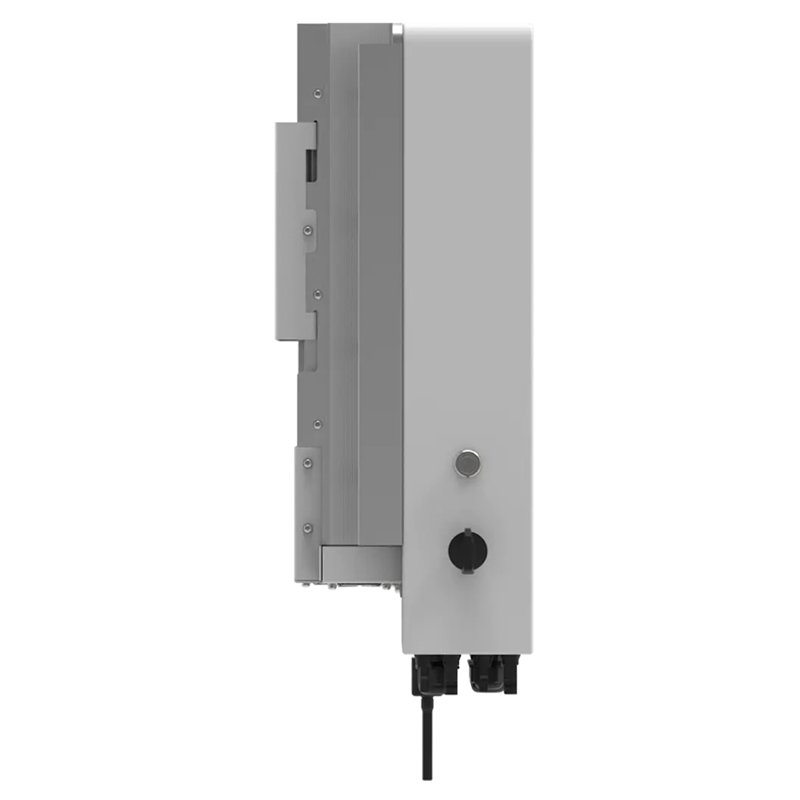

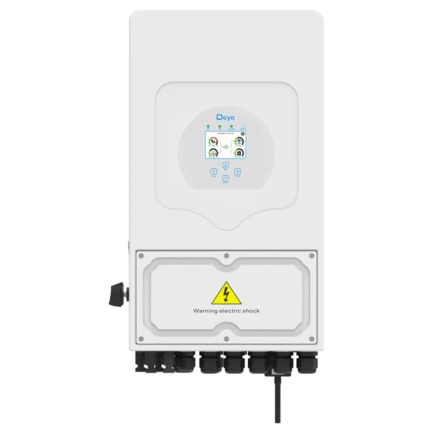

Invertor DEYE Hibrid 6kW Monofazat SUN-6K-SG05LP1-EU-AM2-P
4.142,00 lei
Obtine mai multe detalii.
19
People watching this product now!
Payment Methods:
Descriere produs
| Model | SUN-3.6K-SG05LP1-EU-AM2-P | SUN-5K-SG05LP1-EU-AM2-P | SUN-6K-SG05LP1-EU-AM2-P | SUN-7K-SG05LP1-EU-AM2-P | SUN-7.6K-SG05LP1-EU-AM2-P | SUN-8K-SG05LP1-EU-AM2-P | SUN-10K-SG05LP1-EU-AM2-P |
|---|---|---|---|---|---|---|---|
| Battery Input Data | |||||||
| Battery Type | Lead-acid or Lithium-ion | ||||||
| Battery Voltage Range (V) | 40–60 | ||||||
| Max. Charging Current (A) | 90 | 120 | 135 | 175 | 190 | 190 | 210 |
| Max. Discharging Current (A) | 90 | 120 | 135 | 175 | 190 | 190 | 210 |
| Charging Strategy for Li-ion Battery | Self-adaption to BMS | ||||||
| Number of battery input | 1 | ||||||
| PV String Input Data | |||||||
| Max. PV Access Power (W) | 7200 | 10000 | 12000 | 14000 | 15200 | 16000 | 20000 |
| Max PV Input Power (W) | 5760 | 8000 | 9600 | 11200 | 12160 | 12800 | 16000 |
| Max PV Input Voltage (V) | 500 | ||||||
| Start-up Voltage (V) | 125 | ||||||
| MPPT Voltage Range (V) | 150–425 | ||||||
| Rated PV Input Voltage (V) | 370 | ||||||
| Max Operating PV Input Current (A) | 18+18 | 18+18 | 18+18 | 32+32 | 32+32 | 32+32 | 32+32 |
| Max Input Short-Circuit Current (A) | 27+27 | 27+27 | 27+27 | 48+48 | 48+48 | 48+48 | 48+48 |
| No. MPP Trackers / Strings per MPPT | 2 / 1+1 | 2 / 1+1 | 2 / 1+1 | 2 / 2+2 | 2 / 2+2 | 2 / 2+2 | 2 / 2+2 |
| AC Input/Output Data | |||||||
| Rated AC Input/Output Active Power (W) | 3600 | 5000 | 6000 | 7000 | 7600 | 8000 | 10000 |
| Max AC Apparent Power (VA) | 3960 | 5500 | 6600 | 7700 | 8360 | 8800 | 11000 |
| Rated AC Input/Output Current (A) | 16.4/15.7 | 22.7/21.7 | 27.3/26.1 | 31.9/30.5 | 34.5/33.0 | 36.4/34.8 | 45.5/43.5 |
| Max AC Input/Output Current (A) | 18/17.2 | 25/23.9 | 30/28.7 | 35.0/33.5 | 38/36.3 | 40/38.3 | 50/47.9 |
| Max Continuous AC Passthrough (A) | 35 / 40 / 50 | ||||||
| Peak Power (off-grid) | 2× rated power (10s) | ||||||
| Rated Input/Output Voltage Range (V) | 220/230V (0.85Un–1.1Un) | ||||||
| Grid Connection Form | L + N + PE | ||||||
| Grid Frequency Range | 50Hz (45–55Hz) / 60Hz (55–65Hz) | ||||||
| Power Factor Adjustment Range | 0.8 leading – 0.8 lagging | ||||||
| THDi | <3% | ||||||
| DC Injection Current | <0.5% In | ||||||
| Efficiency | |||||||
| Max Efficiency | 97.60% | ||||||
| Euro Efficiency | 96.50% | ||||||
| MPPT Efficiency | >99% | ||||||
| Equipment Protection | |||||||
| Integrated | DC Reverse Polarity Protection, AC Output Overcurrent Protection, Thermal Protection, AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring, Arc Fault Circuit Interrupter (optional), Anti-islanding Protection, DC Switch, Insulation Impedance Detection, Residual Current Detection |
||||||
| Surge Protection Level | TYPE II (DC), TYPE II (AC) | ||||||
| Interface | |||||||
| Communication | RS485 / RS232 / CAN | ||||||
| Monitor Mode | GPRS / WiFi / Bluetooth / 4G / LAN (optional) | ||||||
| General Data | |||||||
| Operating Temperature Range | -40 to +60°C (>45°C derating) | ||||||
| Ambient Humidity | 0–100% | ||||||
| Altitude | 2500m | ||||||
| Noise | <30 dB(A) | ||||||
| IP Rating | IP65 | ||||||
| Inverter Topology | Non-Isolated | ||||||
| Over Voltage Category | OVC II (DC), OVC III (AC) | ||||||
| Cabinet Size (mm) | 330 × 580 × 232 | ||||||
| Weight (kg) | 24.9 | ||||||
| Warranty | 5 Years / 10 Years | ||||||
| The Warranty Period Depends the Final Installation Site of Inverter. Refer to Warranty Policy for details. |
|||||||
| Grid Regulation | IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G98, G99, VDE-AR-N 4105 |
||||||
| Safety EMC Standards | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 | ||||||
